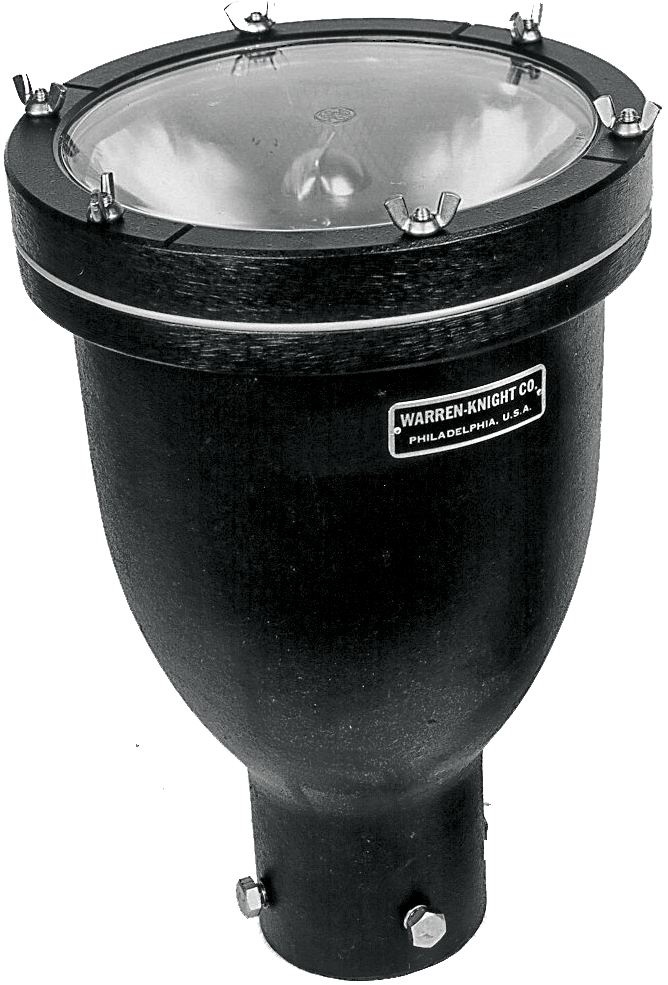

Product Number: WK-22-2095
Measures cloud heights up to 3,000 feet. The projector features a large reflector and 100 watt, 6 volt sealed-beam lamp. Life of 50 hours (approx.).
Includes a 3-minute time limit switch, which is connected to the lamp power supply and prevents longer periods of operation. The lamp operates on 120 VAC, 50/60 Hz.
Used to determine the elevation angle of the light spot projected on the cloud base.
- Size: 9” diameter x 13” height (229M x 330M)
- Weight: 18 lbs. (8 kg)
- Shipping: 25 lbs, (11.3 kg)
